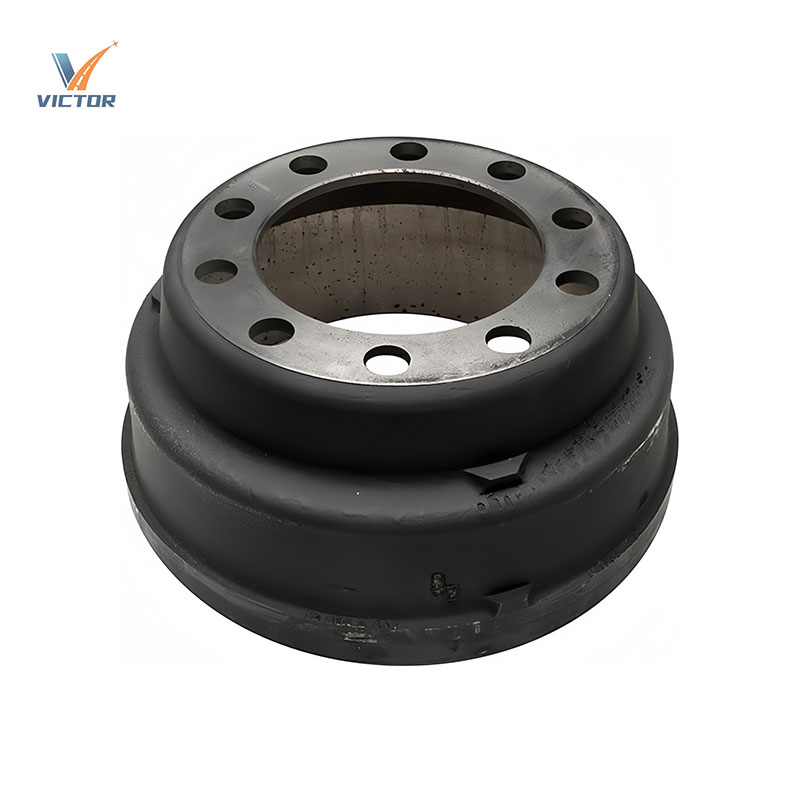

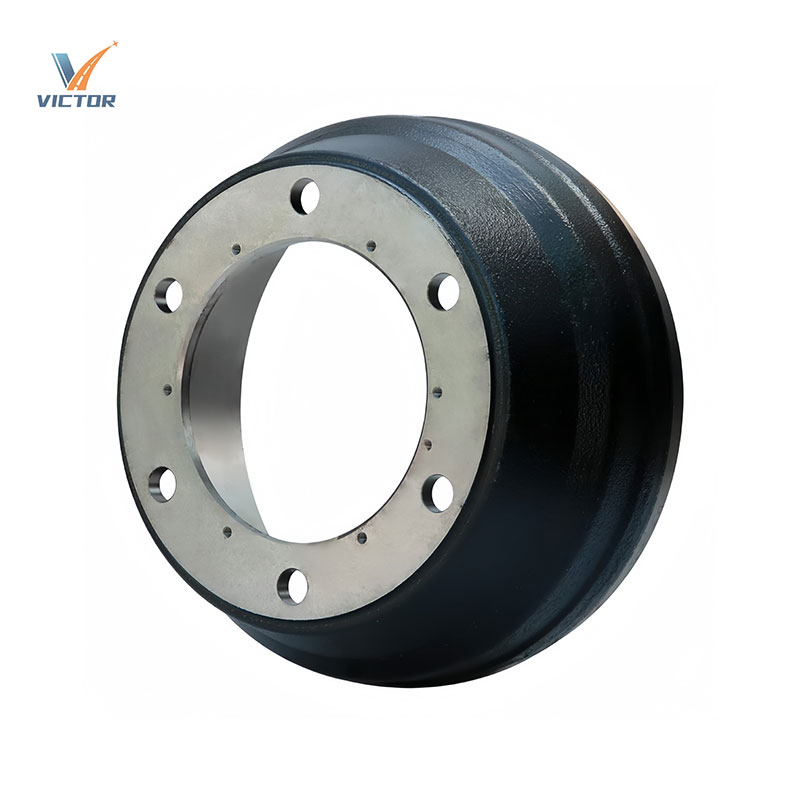

Brake drums play a crucial role in the brake system, as they are integral to friction-based braking. The quality of the brake drum directly impacts both braking effectiveness and its overall service life. Therefore, VICTOR VEHICLE strongly recommends investing in brake drums with consistent quality and stable technology.
Specification:
| Part Number | Brake Diam | Brake Width | Pilot Size | P.C.D. | Holes & Size | All High |
| VMB-101 | Ø419 | 201 | Ø228.6 | Ø285 | 8-ø21 | 276 |
| VMB-102 | Ø419 | 241 | Ø228.6 | Ø285 | 8-ø21 | 316 |
| VMB-103 | Ø419 | 200 | Ø223 | Ø285.75 | 10-ø24 | 273 |
| VMB-104 | Ø419 | 197 | Ø240 | Ø285.75 | 10-ø23 | 252 |
| VMB-105 | Ø419 | 198 | Ø281.9 | Ø335 | 10-ø23 | 252 |
| VMB-106 | Ø419 | 200 | Ø285.75 | Ø335 | 10-ø23 | 276 |
| VMB-107 | Ø419 | 240 | Ø281.9 | Ø335 | 10-ø23 | 292 |
| VMB-108 | Ø419 | 241 | Ø285.75 | Ø335 | 10-ø23 | 315 |
| VMB-109 | Ø419 | 200 | Ø223 | Ø285.75 | 10-ø21 | 273 |
| VGB-201 | Ø420 | 183 | Ø240 | Ø285 | 8-ø21 | 252.5 |
| VGB-202 | Ø420 | 183 | Ø290 | Ø335 | 10-ø23 | 252.5 |
| VGB-203 | Ø420 | 208 | Ø290 | Ø335 | 10-ø23 | 287 |
| VGB-204 | Ø420 | 193 | Ø290 | Ø335 | 10-ø23 | 246 |
| VGB-205 | Ø420 | 226 | Ø290 | Ø335 | 10-ø23 | 284 |
| VGB-206 | Ø420 | 225 | Ø290 | Ø335 | 10-ø23 | 286 |
| VGB-207 | Ø420 | 223 | Ø240 | Ø285 | 8-ø21 | 286 |
| VGB-208 | Ø420 | 225 | Ø290 | Ø335 | 10-ø23 | 283 |
| VGB-209 | Ø420 | 225 | Ø290 | Ø335 | 10-ø23 | 283 |
| VGB-2010 | Ø420 | 222 | Ø240 | Ø335 | 8-ø21 | 283 |
| VGB-2011 | Ø420 | 200 | Ø290 | Ø335 | 10-ø23 | 252.5 |
| VGB-2012 | Ø420 | 225 | Ø290 | Ø335 | 10-ø23 | 298 |
| VGB-2013 | Ø420 | 240 | Ø290 | Ø335 | 10-ø23 | 298 |
| VGB-2014 | Ø420 | 240 | Ø290 | Ø335 | 10-ø23 | 296 |
| VGB-2015 | Ø420 | 215 | Ø290 | Ø335 | 10-ø23 | 277 |
| VGB-2016 | Ø420 | 200 | Ø290 | Ø335 | 10-ø23 | 226 |
| VGB-2017 | Ø420 | 200 | Ø290 | Ø335 | 10-ø23 | 226 |
